Roopu Moiti Tiaki Pouaka Kaihanga Kaihanga

whakarōpūtanga

Momo

Awhe o naianei

Nga ahuatanga matua

Rahi Tāpare

Kiato (raupapa NS2-25)

0.63A – 25A

DIN rail whakapuru, 100kA Icu i 400V, tīwiri/puna pito

Paerewa (raupapa NS2-32)

0.1A – 32A

Te awhe roa, te haerenga wera-aukume, te whakamarumaru o te wahanga-rahunga

Hiko (raupapa NS2-80/100)

10A – 100A

Ko te kaha o te waiariki teitei ake, 15-50kA Icu, te whakairinga papa

Hangarau Haerenga

Ngawha-aukume

0.63A – 100A

Bimetallic overload + solenoid short-circuit, adjustable Ir

Hikohiko

25A – 150A

I runga i te Microprocessor, te koretake o te wahanga, te he o te whenua, te whakawhitiwhiti korero

Momo Mana

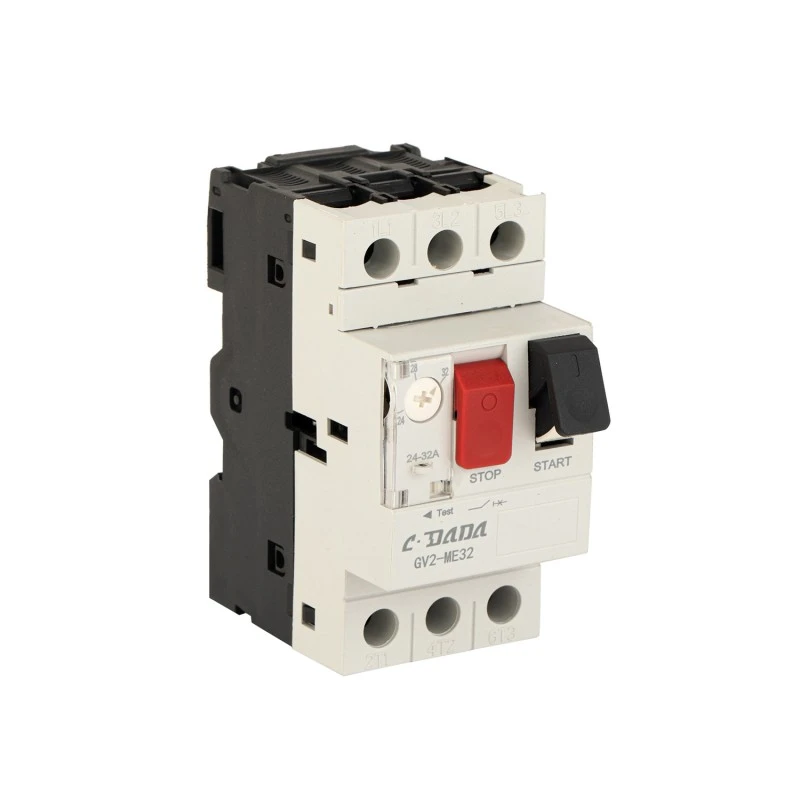

Patene Pana

0.63A – 32A

Paatene Whero OFF, te whakahaere motuka tika, te mahi a-rohe

Kakau Rotary

10A – 100A

Ka taea te maukati i te tuunga OFF, te taapiri raka (3 raka)

Mana Mamao Kua Reri

25A – 100A

Ko te hototahitanga o te haerenga me te tuku i raro i te ngaohiko

Te waahanga Whakamahinga

AC-3

Whakatauranga katoa

Ka timata/ka mutu te motika Squirrel-cage i te wa e oma ana

AC-4

0.63A – 32A

Ka timata te motopaika-whare, te mono, te inihi (10×In)

Whirihoranga Pou

3-Pole

0.63A – 100A

Paerewa toru-wahanga motini tiaki

4-Pole

0.63A – 32A

E toru-waahanga + koretake, e rua-tere ranei te whakawhiti motuka

Mahi

Tikanga Rapu

Tawhā Hangarau

Parenga Taumaha (Waawha)

Te roha wera o te riu bimetallic

Ka taea te whakarite 0.63-100A, te karaehe takahi 10A (2-10s i te 6×In), utu ambient -20°C ki te +60°C

Parenga Porowhita-poto (Aukume)

Plunger solenoid hiko

Whakamau 12-14×In (motor-optimized), <20ms mahi, 100kA pakaru kaha

Wāhanga Rahunga Parenga

Te whakamahana rereke o te bimetal

Te haerenga i roto i te 10s i te 0.9×I roto me te tuwhera te wahanga kotahi, ka aukati i te kino o te wahanga kotahi

Wāhanga Tauritenga Parenga

He rerekee ngaaariki i waenga i nga wahanga

Te haerenga i te wa e kore e taurite ana >30% mo >2 meneti

Tiaki Rotor kua kati

Ka mau tonu te ia (>6×In mo >2s)

Kua whakaurua ki te pihi waiariki, ka aukati i te kino o rotor/stator

Whakawhiti ā-ringa

Pātene takahuri/pana

100,000 nga mahi hiko, ON-OFF mana motuka, mahi wehe

Rangai Ahumahi

Taupānga Tauwhāiti

Whakatakotoranga Angamaheni

Ahumahi Aunoa

Pūnaha kawe, papu, compressors, pā

4A-25A, AC-3, 100kA Icu, mana patene pana, reera DIN

Nga punaha HVAC

Chillers, wae whakahaere hau, pourewa whakamatao

10A-32A, utu ambient, auau timata tiketike

Wai & Waipara

Puma ruku, teihana whakanui, irrigation

6A-40A, whakamarumaru oma maroke (te whakakotahi i te pehanga), nga taapiri IP65

Utauta Miihini

Mihini, miihini mira, miihini

1.6A-10A, te kaha o te kohukohu, ka timata tonu (AC-4)

Te Whakahaere Rawa

Nga warou, nga kaitapa, nga kaikawe, nga ararewa

10A-63A, te kakau hurihuri, ka taea te kati, te honohono miihini

Kai me te Inu

Whakaranu, mira, mīhini tākai

2.5A-16A, taputapu kowiri tira, mahi horoi

Pūngao Whakahou

Nga motuka aroturuki solar, nga awhina hiko hiko

1A-10A, te awhe pāmahana roa (-25°C ki +70°C)

Te hinu me te hau

He awhina rig keri, he kokiri papu

25A-100A, parūrū (T2), waikura-ātete, ātete ru nui

Tauranga

Tukatuka Taipitopito

Nga Tohu Mana Kounga

Hanga Huanga Bimetallic

Inconel/passivated maitai hiato okeoke, whakamahana wera mo nga ahuatanga paheketanga, te hiri ki te hanga, te tohu whakatikatika

Te tere o te paheketanga 0.15-0.25mm/°C, te pāmahana haerenga ± 3% te manawanui, te whakamatautau pumau 1000h i te 200°C

Hangahanga Poihini Hiko

Waea konukura awhiowhio (0.3-0.8mm), whakapoipoi parani korehau, hui matua autō

Te ātete DC ±5%, te kaha dielectric 2kV/1min, te whakamatautau ngaohiko tiki/whakarere

Te Whakataunga Haerenga Ngawha

Teihana whakatikatika aunoa me te werohanga o naianei, te ruma mahana (-20°C ki te +60°C)

Wā haerenga i te 1.05×Ir, 1.25×Ir, 6×Ir i tuhia, ±10% te manawanui, te tohu tuturu

Tautuhinga Haerenga Aukume

Ko te whakarereketanga o te aputa hau Solenoid, te whakatikatika i te puna i mua i te kawenga, ka hiri i muri i te whakatakotoranga

Haerenga tere i te 12-14×Ir ±10%, <20ms mahi, hiri-a-raruraru.

Whakapa atu ki te Runanga Pūnaha

Ko nga hoapaki-hiriwa (AgNi, AgCdO) kua parai ki nga kaikawe parahi, ka muru i te ahuahanga mahi

Te parenga whakapä <1mΩ, te pakeke HV 100-150, te kaha parai >50MPa

Arc Chute Integration

Pereti whakawehe uku (6-12 pereti), tirohanga arc runner, whakahiato ruuma whakamaarama

Te kaha dielectric>2.5kV, tinei pewa <10ms i te 400V, ahu ±0.1mm

Huihuinga Miihini Whakamutunga

Takahuri/pana patene tikanga, takahuri kore-haere, whakapiri i nga puna pehanga, hono kakau

Te manawanui o te miihini 100,000 nga mahi, te pehanga whakapiri 5-10N, te wa peke <3ms

Whakamātautau Matawhānui

Te whakamatautau werohanga tuatahi (0.5-1000A), te manatokonga o te waa-naianei, te whaihanga rahunga

100% te whakamatautau aunoa, te takiuru raraunga, te tohu tohu QR

Waehanga

Whakatakotoranga Rawa

Paerewa Kaituku

Ngā Āhuatanga Matua

Takiruarua

Inconel 718/te hiato maitai o te haere (ASTM TM2) te parahi/te rino ranei

ASTM B388, IEC 60404

Te tere paopao 0.2mm/°C, te pumau ±3% mo te 20 tau, te aukati ngokingoki

Porowhita Hiko

Waea parahi enamera Class F (155°C) ranei Class H (180°C)

IEC 60317, NEMA MW 35

Ngaohiko pakaru>2kV, solderability 390°C/2s, hangore

Kohanga aukume

Ko nga raima rino Silicon (0.35-0.5mm) he rino totoka ranei

IEC 60404-8, JIS C 2552

Te uruhanga teitei, te iti o te remanence, nga ahuatanga tango rite

Hoapā Matua

Te parahi hiko (Cu-ETP) + AgNi 90/10 me nga tohutohu AgCdO

ASTM B152, IEC 60368

Conductivity ≥100% IACS, arc erosion resistance, anti-welding

Whakapā Puna

parahi Beryllium (CuBe2) he kowiri tira 301 ranei

ASTM B196

Te ora ngenge>100,000 huringa, te pehanga rite 5-10N

Nga Pereti Arc Chute

Uku Steatite, alumina ranei (Al₂O₃ 95%)

IEC 60672

Te wera wera> 1000 ° C, te kaha dielectric> 15kV / mm

Ko nga Runners Arc

Te parahi-tungsten (CuW) te maitai ranei me te whakakikorua parahi

ASTM B702

Ātete te horo pewa, te pewa autō

Te Puhi Whakatau

BMC (DMC-2) kirihou whakamaoritanga, PA66 GF30 ranei

IEC 60664-1, UL 94 V-0

Taupū Aroturuki>600V, parenga wera 180°C, pānga>7 kJ/m²

Tikanga Mahi

Te rino whakakikoruatia konutea, he kowiri tira ranei 304

ISO 898-1, ASTM A240

Te kaha tensile> 400MPa, te aukati waikura, te kakahu-aukati

Nga taunga

Parahi C36000 parahi ranei C11000 me te whakakikorua tine (5-8μm)

ASTM B16/B187

Kiato o nāianei 1.0-1.5 A/mm², taipana te 1.5-3.0Nm

Paerewa

Te whānuitanga

Whakatauranga e tika ana

IEC 60947-2

Ngaohiko hiko iti - Ngaohiko-waahi

Te tiaki iahiko-poto, te kaha pakaru, te wehe

IEC 60947-4-1

Nga kaiwhakataki me nga kaiwhakataki motopaika - Nga kaiwhakataki Hihiko me nga kaiwhakataki motuka

Te tiimata o te motuka, te whakamarumaru taumaha, te whakakotahi me nga kaiwhakataki

EN 60947-2 / EN 60947-4-1

Ko nga putanga whakakotahi a te Pakeha

Te tohu CE, te hanganga ture o te maakete EU

GB/T 14048.2 / GB/T 14048.4

Nga paerewa motu Hainamana

Tiwhikete CCC, maakete Haina

Kāwai Whakamātautau

Whakamātautau Tauwhāiti

Paearu Whakaaetanga

Te Hinga o te Pawera

Tonu te naianei i reiti Ir

Ko nga pito ≤80K (hiriwa), ≤65K (karekau), bimetal ≤85K

Ngā Āhuatanga Dielectric

Te kaha-auau te tu (2kV-2.5kV/1min), te hihiko (6kV-8kV)

Karekau he pakaru, karekau he hikoi

Parenga taumaha

1.05×Ir (kore haerenga 2h), 1.25×Ir (haerenga ≤2h), 1.5×Ir (haerenga <4min)

Nga wa haerenga mo ia karaehe haerenga

Waahi Porowhita Poto

Icu (mutunga), Ics (ratonga) i te ngaohiko whakatau

100kA @ 400V (kiato), 15-50kA @ 400V (awhe hiko)

Te ruruku

Momo 1 ranei Momo 2 me SCPD

Momo 2: karekau he kino, ka mahi ano

Wāhanga Rahungatanga

Mahi kotahi-waahanga i 0.9×Ir

Te haerenga i roto i te 10s, ka aukati i te motika kotahi-waahanga

Te Maamaa Miihini

100,000 nga mahi kore-uta

<5% te paheketanga tawhā, karekau he rahunga miihini

Te Manawa Hiko

100,000 AC-3 mahi (0.63-32A)

Ko nga kakahu whakapiri <50%, ka mau tonu nga ahuatanga o te haerenga

Taiao

Te wera haukū (IEC 60068-2-30), te makariri, te wera maroke

Mahi i muri i te whakamahana, kaore he waikura

EMC

Te aukati ki te whakaraerae/whakahaere pokanoa (momo hiko)

Karekau he paheketanga, EN 60947-4-1 Annex L

Rauemi

Nga Tuemi Tirotiro

Mahere Tauira

Taputapu

Nga takai bimetallic

Te tere o te paheketanga, te parenga, te pumau, te ahua o te ahua

Ia puranga, whakamatautau tauira

Te umu wera, te ine whakatararo, te piriti aukati

Waea enamera

Te Diamita, te matotoru o te whakamatao, te ngaohiko pakaru, te ngawari

AQL 0.65

Ko te Micrometer, te dielectric tester, te elongation tester

Nga tohutohu whakapiri hiriwa

Te parakore, te kiato, te pakeke, te hototahi koranu brazing

Ia puranga

Spectrometer, whakamaarama pakeke, karuiti whakarewa

Pūhui kirihou

Te ihirangi karaihe, te pokey, nga ahuatanga whakaora, te mura

Ia puranga

Kaitautohu rere rewa, DSC, UL 94 taputapu whakamatautau

Nga waahanga rino

Te pakeke, te kaha tensile, te aro nui

AQL 1.0

Ko Rockwell te whakamaarama pakeke, te miihini tensile, CMM

Teihana

Tawhā Mana

Auautanga

Tikanga

Te whakatikatika bimetal

Te pāmahana haerenga, te paheketanga i te pāmahana tohutoro, te tohu

Ia waeine

Teihana whakatikatika aunoa me te werohanga o naianei

Te awhiowhiowhio

Ka huri te tatau, te taumahatanga, te parenga, te whakamau

Ia waeine

Miihini awhiowhio aunoa me te urupare, ohmmeter

Te tautuhinga haerenga autō

Te hau hau, te puna i mua i te utaina, te tere tere

Ia waeine

Kaiwhakamātau werohanga tuatahi (50-1000A), inenga wā

Huihuinga whakapā

Aputa whakapā, pēhanga, tīaroaro, ātete

Ia 100 wae

Te ine kaha, te moroiti-ohmmeter, te whakatairite whatu

Te whakakotahi i te miihini

Takahurihia te kaha, te mahi kore-haere, te mahi hapai

Ia waeine

He kaiwhakamatau mahi aunoa, te pihi kaha-nuku

Tūemi Whakamātautau

Paerewa

Rahi Tauira

Manatokonga haerenga wera

1.05×Ir (karekau he haerenga), 1.25×Ir (haerenga), te wa tuhi

100%

Manatoko haerenga autō

12-14×I tere tere, <20ms

100%

Te whakamatautau i te korenga o te wahanga

Mahi kotahi-waahanga, haerenga i roto i te 10s

100%

Dielectric te mau ngaohiko

2kV AC/1min

100%

Te parenga whakaahuru

>100MΩ @ 500V DC

100%

Atete whakapä

<1mΩ ia pou

100%

Te mahi miihini

10 ON-OFF huringa, mahi maeneene

100%

Te tirotiro tirohanga me te taha

Kore he koha i runga i nga ine tino nui

100%

Te tohu pumau

Te muru whakarewa, te whakamatautau abrasion

AQL 1.0

Te tapatahi o te kete

Whakamatau whakataka, wiri (ISTA 3A)

Ia rota

Kāwai Taputapu

Whakatakotoranga Miihini

Mahi

Te kaha

Raina Whakaputa Bimetal

Te mira hurihuri tika, te oumu maimoatanga wera, te perehi perehi

Te hanga takai bimetallic, te whakatikatika

50,000 takai/ra

Whakaritea Aunoa

6-teihana pūnaha whakatikatika hurihuri me nga ruma pāmahana

Te whakamaaramatanga o te haerenga wera (-20°C ki te +60°C)

2,000 wae/ra

Whakamātautau Werohanga Tuatahi

1000A huinga werohanga tuatahi o naianei

Wā-naianei manatokonga ānau

500 wae/haora

Te Awhiowhio

Ko nga miihini awhiowhio CNC me te mana o te awangawanga

Ko te hanga irahiko hiko

10,000 coils/ra

Whakapā Brazing

Umu whakawera hau (H₂/N₂)

Ko te pito hiriwa te parai ki nga kaikawe parahi

5,000 hoapā/haora

Huihuinga

Ngā pūtau hui mahi

Huihuinga miihini, whakatikatika, whakamatautau

3,000 wae/ra mo ia raina

Whakamatau Whakamatau

Taumanu whakamatautau ora miihini/hiko (100,000 huringa)

Manatoko ora, aroturuki kakahu

200 waeine i te wa kotahi

Te Whakamatau Taiao

Nga ruma mahana/makuku, tepu wiri

IEC 60068-2 manatoko hanganga

100 wae/ra

Kāwai Hua

Te Raukaha o ia Marama

Waa Arahi Paerewa

Te Ota Whakatairanga Tere

MPCB ​​kiato (0.63A-25A)

100,000 wae

4-5 wiki

3 ra (waahanga taonga)

MPCB ​​Paerewa (0.1A-32A)

80,000 wae

4-5 wiki

5 ra

Mana MPCB (10A-63A)

60,000 wae

4-5 wiki

7 ra

MPCB ​​Taumaha (40A-100A)

20,000 wae

4-5 wiki

10 ra

MPCB ​​Hiko (25A-150A)

20,000 wae

4-5 wiki

7 ra

Tari

Kaimahi

Tohungatanga

Nga kawenga

R&D Hangarau

5 nga miihini

Ko nga huringa whakamarumaru motuka, nga rauemi bimetallic, te hoahoa hiko, te tiini arc

Te whanaketanga hua hou, te whakatauira waiariki, te kōpaki patent (40+ patent)

Tukatuka Hangarau

18 nga miihini

Te whakatikatika tika, te huihuinga aunoa, te hanga hiroki, Ahumahi 4.0

Te arotautanga o te whakaputanga, nga tuhinga SOP, te whakapai ake i nga hua (>99.5%)

Te Whakamatau me te Whakamana

15 nga miihini

Te whakamatautau teitei o naianei, te whakatauira motuka, te whakamatautau taiao, EMC

Momo ruruku whakamātautau (IEC 60947-4-1), tātari rahunga, tohu

Hangarau Tono

10 nga miihini

Ko nga tatauranga timata motika, nga rangahau ruruku, nga mahi mahi mara

Te tautoko hangarau a te kiritaki, te hoahoa kaupapa, te whakangungu tiaki motuka

Te Whakaaetanga Kounga

30 nga tohunga hangarau

ISO 9001, IATF 16949, whakahaere tukanga tatauranga (SPC), metrology

Te arotake a te kaiwhakarato, te arotake i te tukanga, te mahi whakatika, te taiwhanga whakatikatika

Tiwhikete

Te Tino Tuku

Te whānuitanga

Te whaimana

ISO 9001:2015

ZHONGDA HUAYUAN

Te punaha whakahaere kounga

Te tirotiro i ia tau

IEC 60947-2 Momo Whakamatau

SGS

Mahi-a-hiko

Ia raupapa hua

Te Tohu CE

Tino Whakamhiotia

Te uru ki te maakete EU

Hoahoa-whakaaro

CCC (Haina)

CQC

Tiwhikete herenga Hainamana

5-tau mana
